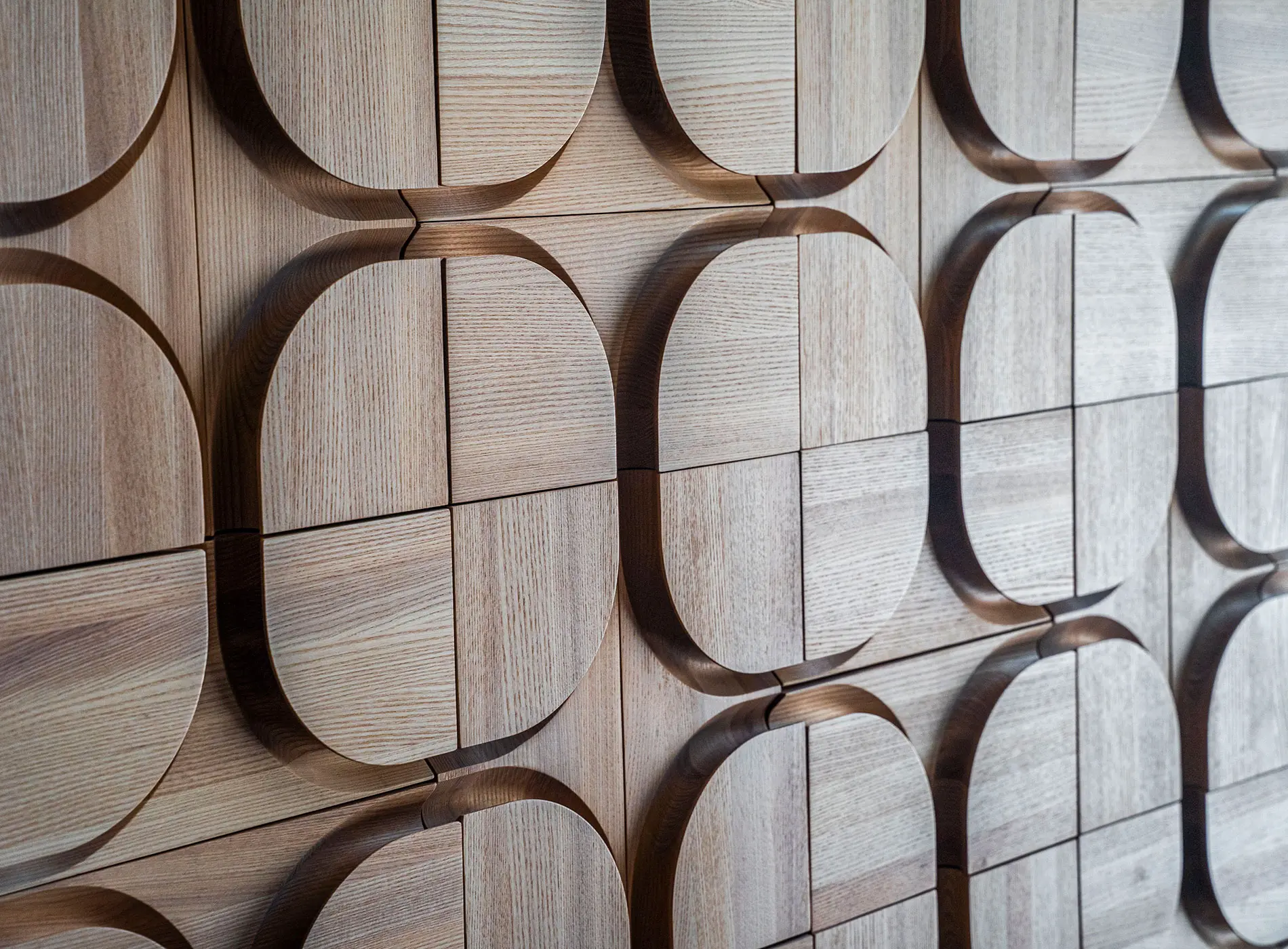

Designed on the principle of creating layers within a space, Chada explores the tension between surface and depth through a distinctive double undercut. This tension was inspired by the natural contrast seen in the rocky outcrops and gully’s that erode the landscape of Central NSW.

Chada Timbers & Finishes

Chada Timbers & Finishes

Chada Timbers & Finishes

Chada Timbers & Finishes

Chada Timbers & Finishes

Evove timber panels are available in American White Oak, Red Oak, Walnut, Ash or other species on request. The finish used is an Osmo oil and wax blend which is natural, eco-friendly and non-toxic. Semi-Matt gloss level is standard, however a range of custom stains and gloss levels are available upon request.

CHADA

Sample
Sample

American

White Oak

Sample
Sample

American

Red Oak

Sample
Sample

American

Walnut

Sample
Sample
Sample
Sample
Sample

American

Ash

Sample
Sample

Custom
Finishes

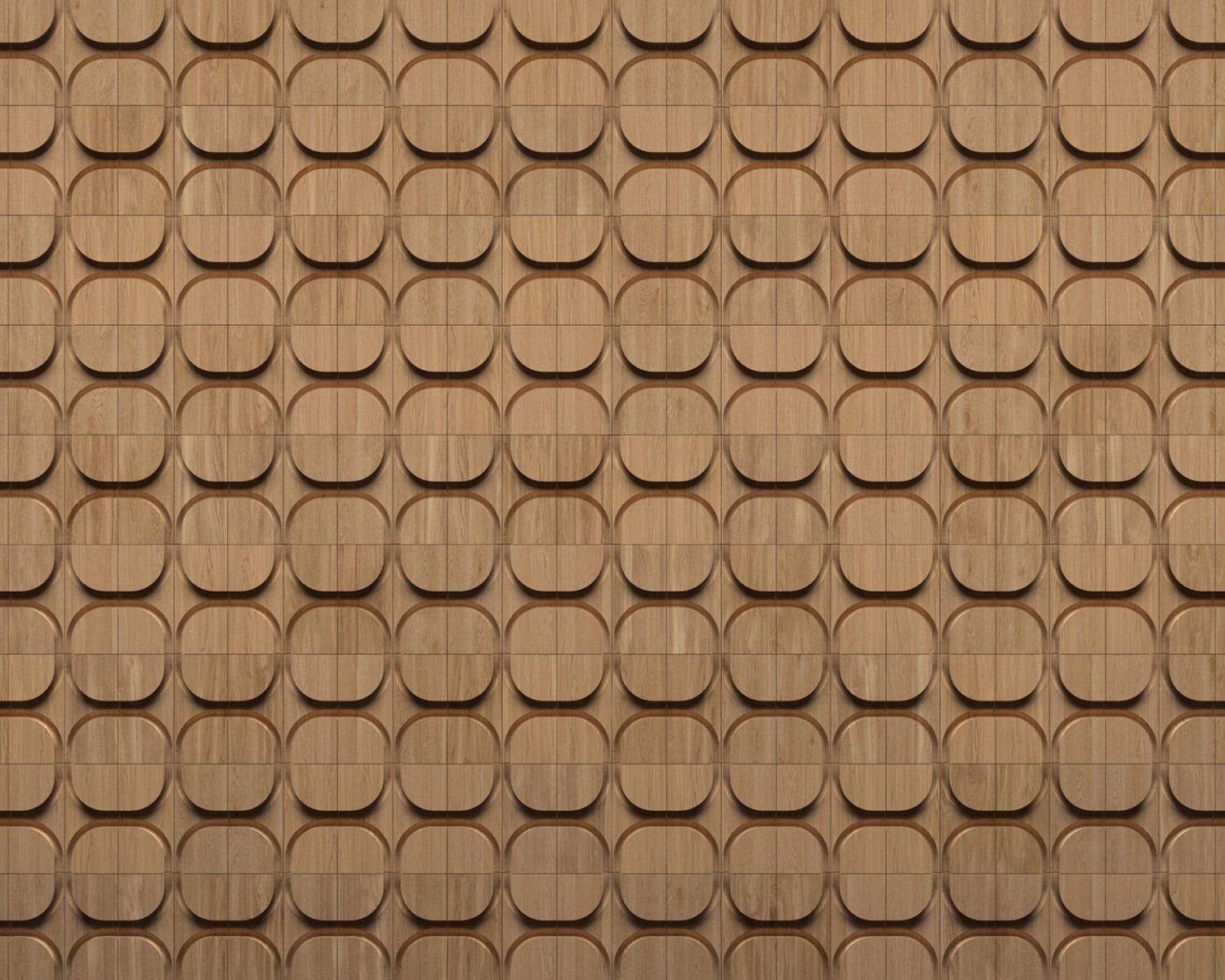

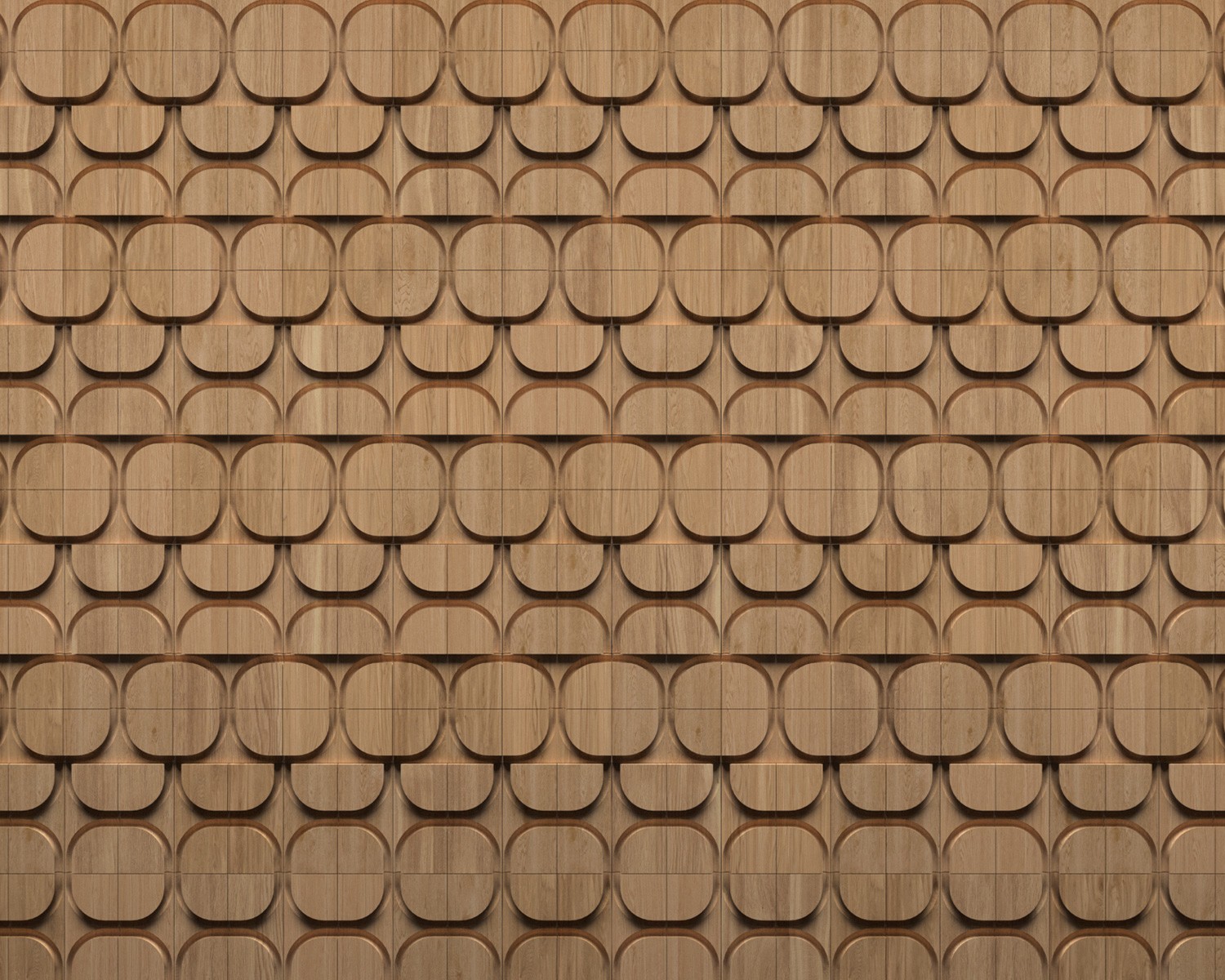

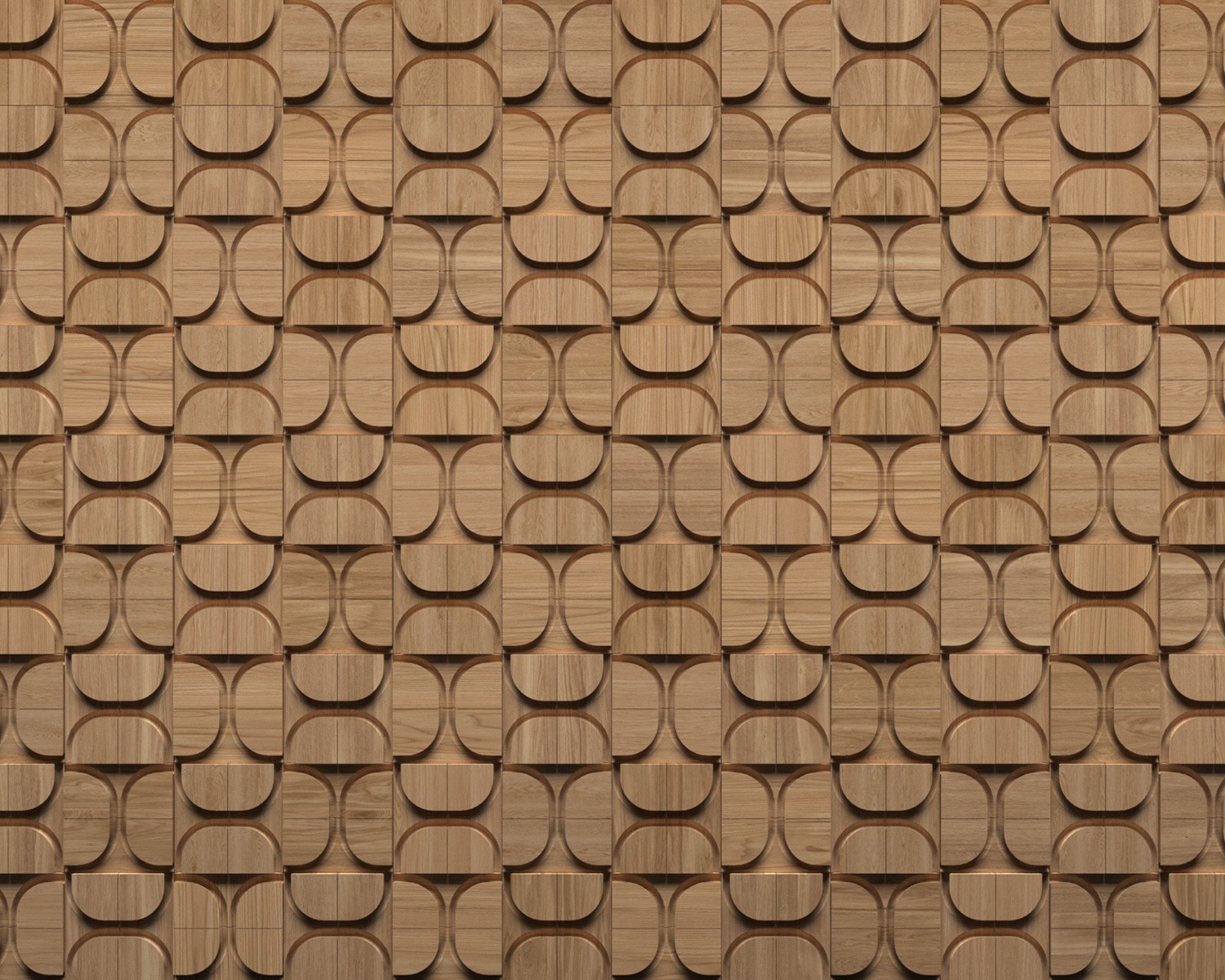

Chada Pattern Examples

Chada Pattern Examples

Chada Pattern Examples

Chada Pattern Examples

Chada Pattern Examples

Slide 1Slide 2Slide 3
Chada Example 1
Slide 1Slide 2Slide 3
Chada Example 1
Slide 1Slide 2Slide 3
Slide 1Slide 2Slide 3
Chada Example 1

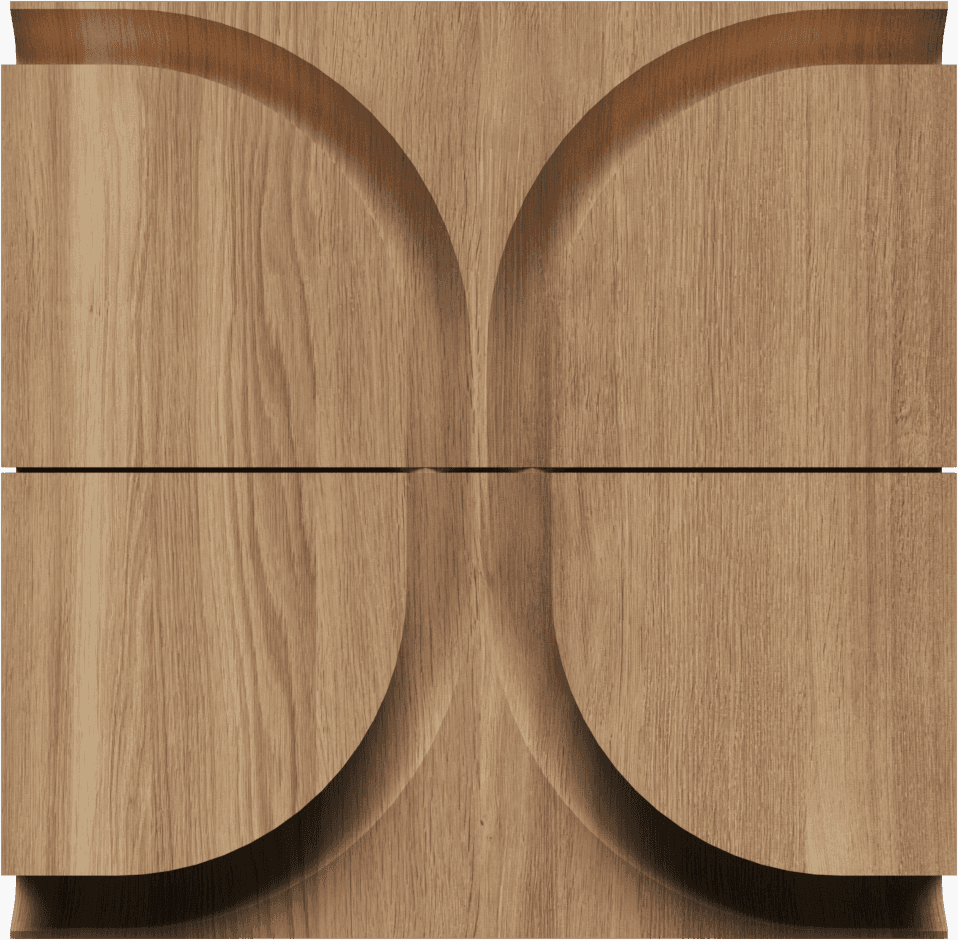

Chada Panel Dimensions + Setout

IMPERIAL

Evove timber panels are  330 (W) x 330 (H) x 42mm (D) installed with a 2mm gap between panels to allow for timber movement. 9 panels are required to cover 1 sqm. Setout is based on a 332 x 332mm grid

The installation backing panel is 914 x 914 x 15mm plywood with joiners to custom suit each application.

The overall thickness of the Evove system is 57mm.

Using the custom mounting board, each panel can be easily rearranged without the need for specialist equipment.

Chada Dimensions

IMPERIAL

Evove timber panels are  330 (W) x 330 (H) x 42mm (D) installed with a 2mm gap between panels to allow for timber movement. 9 panels are required to cover 1 sqm. Setout is based on a 332 x 332mm grid

The installation backing panel is 914 x 914 x 15mm plywood with joiners to custom suit each application.

The overall thickness of the Evove system is 57mm.

Using the custom mounting board, each panel can be easily rearranged without the need for specialist equipment.

Chada Panel Dimensions + Setout

IMPERIAL

Evove timber panels are  330 (W) x 330 (H) x 42mm (D) installed with a 2mm gap between panels to allow for timber movement. 9 panels are required to cover 1 sqm. Setout is based on a 332 x 332mm grid

The installation backing panel is 914 x 914 x 15mm plywood with joiners to custom suit each application.

The overall thickness of the Evove system is 57mm.

Using the custom mounting board, each panel can be easily rearranged without the need for specialist equipment.

Chada Panel Dimensions + Setout

IMPERIAL

Evove timber panels are  330 (W) x 330 (H) x 42mm (D) installed with a 2mm gap between panels to allow for timber movement. 9 panels are required to cover 1 sqm. Setout is based on a 332 x 332mm grid

The installation backing panel is 914 x 914 x 15mm plywood with joiners to custom suit each application.

The overall thickness of the Evove system is 57mm.

Using the custom mounting board, each panel can be easily rearranged without the need for specialist equipment.

Chada Panel Dimensions + Setout

IMPERIAL

Evove timber panels are  330 (W) x 330 (H) x 42mm (D) installed with a 2mm gap between panels to allow for timber movement. 9 panels are required to cover 1 sqm. Setout is based on a 332 x 332mm grid

The installation backing panel is 914 x 914 x 15mm plywood with joiners to custom suit each application.

The overall thickness of the Evove system is 57mm.

Using the custom mounting board, each panel can be easily rearranged without the need for specialist equipment.

Chada Sustainability

Chada Sustainability

Chada Sustainability

Chada Sustainability

Chada Sustainability

Evove interior timber panels are designed and manufactured in Australia by Evostyle.

Made from sustainably sourced and FSC certified hardwoods. Each panel is made predominantly from timber offcuts produced in the Evostyle workshop. The clip system and mechanical fixings allow for easy end-of-life separation and recycling.

Chada Fire Resistance

Chada Fire Resistance

Chada Fire Resistance

Chada Fire Resistance

Chada Fire Resistance

Evove only uses timber species that have achieved a Group 3 rating in accordance with AS/NZ 3837. The Osmo coating is classified as B1 for flammability according to DIN 4102 regulations - it does not speed up a flame nor does it resist a flame.

Chada Care

Chada Care

Chada Care

Chada Care

Chada Care

The finish of our timber panels has been chosen for durability in commercial settings. Made of a mixture of oil and wax, the finish is long lasting. Long term maintenance is simple, with limited cleaning required. Panels can be re-coated on site if required. Evove offers a product stewardship servicing program.
